Hex Ceev
Hex ceev zoo li cas?

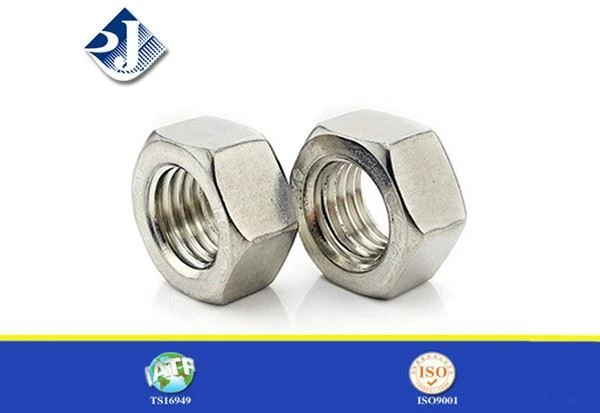

Taw qhia ntawm hex ceev:
Hexagon cov noob txiv yog siv ua ke nrog screws, ntsia hlau, thiab ntsia hlau kom txuas thiab txuas ntawm qhov. ASME ANSI hex txiv ntoo npog lub qhov ntev yuav tsum ntawm nti series hex txiv ntoo. Tus qauv txheem ntawm ASME / ANSI hex txiv ntoo yog ASME B18.2.2. Nws suav nrog ib txwm hex txiv ntoo, hex nyias txiv ntoo, hex tuab txiv ntoo thiab hnyav hex txiv ntoo. Qhov loj los ntawm 1 / 4-4" txoj kab uas hla. DIN txuj yog DIN934.
ASME hex txiv ntoo yog dav siv, feem ntau hauv kev lag luam tshuab thiab khoom siv, kev tsim kho, tsheb, tsheb ciav hlau thiab lwm yam kev lag luam. Cov cuab yeej siv tshuab muaj qib 2, qib 5, qib 8 rau cov nti ua ntu, qeb 4, qeb 8, qeb 10, qib 12 rau cov xov xwm koob.
Shanghai Jinrui Norm Chaw Khoom Siv Co., Ltd yog ib qho ntawm cov coj hex txiv ntseej manufacturers thiab cov muag khoom nyob rau hauv Suav teb, txais tos mus yuav cov khoom siv hex txiv ntoo, los ntawm peb lub Hoobkas thiab tuam txhab.
Nta thiab zoo ntawm hex txiv ntoo:
1. Cov noob txiv hex uas tsim los ntawm peb lub tuam txhab txhua tus siv cov ntaub ntawv raw khoom los ntawm cov hlau zoo paub, thiab cov ntaub ntawv coj ua tuaj yeem muab tau.
2. Qhov loj muaj ntau ntau yam, xws li los ntawm M3-M90.
3. lub hex txiv ntoo ua los ntawm lub siab zoo steel, nws muaj cov xov high precision, Nws yooj yim heev thaum sib txuam nrog cov ntsia liaj qhov rooj.
4. Qib ntawm hex txiv ntoo ua tau raws li ISO tus qauv, xws li ISO898. Tsis tas li peb cov noob txiv hex ceev muaj cov xim zoo nkauj nrog kev zoo corrosion. Lub tsho tawv ntawm cov khoom siv nrog cov txheej yuav tseem yuav ua kom muaj zog thiab yuav ua kom ntev dua.
Ntau lawm txheej txheem ntawm hex ceev:
Qhia txog hex ceev:
1, DIN934 Hex ceev
d | M1 | M1.2 | M1.4 | M1.6 | (M1.7) | M2 | (M2.3) | M2.5 | (M2.6) | M3 | (M3.5) | |
P | UNC | 0.25 | 0.25 | 0.3 | 0.35 | 0.35 | 0.4 | 0.45 | 0.45 | 0.45 | 0.5 | 0.6 |
UNF | / | / | / | / | / | / | / | / | / | / | / | |
UNF | / | / | / | / | / | / | / | / | / | / | / | |
m | max | 0.8 | 1 | 1.2 | 1.3 | 1.4 | 1.6 | 1.8 | 2 | 2 | 2.4 | 2.8 |
min | 0.55 | 0.75 | 0.95 | 1.05 | 1.15 | 1.35 | 1.55 | 1.75 | 1.75 | 2.15 | 2.55 | |
mw | min | 0.44 | 0.6 | 0.76 | 0.84 | 0.92 | 1.08 | 1.24 | 1.4 | 1.4 | 1.72 | 2.04 |
s | max | 2.5 | 3 | 3 | 3.2 | 3.5 | 4 | 4.5 | 5 | 5 | 5.5 | 6 |
min | 2.4 | 2.9 | 2.9 | 3.02 | 3.38 | 3.82 | 4.32 | 4.82 | 4.82 | 5.32 | 5.82 | |
e ① | min | 2.71 | 3.28 | 3.28 | 3.41 | 3.82 | 4.32 | 4.88 | 5.45 | 5.45 | 6.01 | 6.58 |
* | - | - | - | - | - | - | - | - | - | - | - | |
KGS / 1000PCS | 0.03 | 0.054 | 0.063 | 0.076 | 0.1 | 0.142 | 0.2 | 0.28 | 0.72 | 0.384 | 0.514 | |
d | M4 | M5 | M6 | (M7) | M8 | M10 | M12 | (M14) | M16 | (M18) | M20 | |
P | UNC | 0.7 | 0.8 | 1 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2 | 2.5 | 2.5 |
UNF | / | / | / | / | 1 | 1 | 1.5 | 1.5 | 1.5 | 1.5 | 2 | |
UNF | / | / | / | / | / | 1.25 | 1.25 | / | / | 2 | 1.5 | |
m | max | 3.2 | 4 | 5 | 5.5 | 6.5 | 8 | 10 | 11 | 13 | 15 | 16 |
min | 2.9 | 3.7 | 4.7 | 5.2 | 6.14 | 7.64 | 9.64 | 10.3 | 12.3 | 14.3 | 14.9 | |
mw | min | 2.32 | 2.96 | 3.76 | 4.16 | 4.91 | 6.11 | 7.71 | 8.24 | 9.84 | 11.44 | 11.92 |
s | max | 7 | 8 | 10 | 11 | 13 | 17 | 19 | 22 | 24 | 27 | 30 |
min | 6.78 | 7.78 | 9.78 | 10.73 | 12.73 | 16.73 | 18.67 | 21.67 | 23.67 | 26.16 | 29.16 | |
e ① | min | 7.66 | 8.79 | 11.05 | 12.12 | 14.38 | 18.9 | 21.1 | 24.49 | 26.75 | 29.56 | 32.95 |
* | - | - | - | - | - | - | - | - | - | - | - | |
KGS / 1000PCS | 0.81 | 1.23 | 2.5 | 3.12 | 5.2 | 11.6 | 17.3 | 25 | 33.3 | 49.4 | 64.4 | |
d | (M22) | M24 | (M27) | M30 | (M33) | M36 | (M39) | M42 | (M45) | M48 | (M52) | |
P | UNC | 2.5 | 3 | 3 | 3.5 | 3.5 | 4 | 4 | 4.5 | 4.5 | 5 | 5 |
UNF | 1.5 | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 3 | 3 | |
UNF | 2 | / | / | / | / | / | / | / | / | / | / | |
m | max | 18 | 19 | 22 | 24 | 26 | 29 | 31 | 34 | 36 | 38 | 42 |
min | 16.9 | 17.7 | 20.7 | 22.7 | 24.7 | 27.4 | 29.4 | 32.4 | 34.4 | 36.4 | 40.4 | |
mw | min | 13.52 | 14.16 | 16.56 | 18.16 | 19.76 | 21.92 | 23.52 | 25.9 | 27.5 | 29.1 | 32.3 |
s | max | 32 | 36 | 41 | 46 | 50 | 55 | 60 | 65 | 70 | 75 | 80 |
min | 31 | 35 | 40 | 45 | 49 | 53.8 | 58.8 | 63.1 | 68.1 | 73.1 | 78.1 | |
e ① | min | 35.03 | 39.55 | 45.2 | 50.85 | 55.37 | 60.79 | 66.44 | 71.3 | 76.95 | 82.6 | 88.25 |
* | - | - | - | - | - | - | - | - | - | - | - | |
KGS / 1000PCS | 79 | 110 | 165 | 223 | 288 | 393 | 502 | 652 | 800 | 977 | 1220 | |
d | M56 | (M60) | M64 | (M68) | M72 | (M76) | M80 | (M85) | M90 | M100 | |
P | UNC | 5.5 | 5.5 | 6 | 6 | / | / | / | / | / | / |
UNF | 4 | 4 | 4 | 4 | 6 | 6 | 6 | 6 | 6 | 6 | |
UNF | / | / | / | / | 4 | 4 | 4 | 4 | 4 | 4 | |
m | max | 45 | 48 | 51 | 54 | 58 | 61 | 64 | 68 | 72 | 80 |
min | 43.4 | 46.4 | 49.1 | 52.1 | 56.1 | 59.1 | 62.1 | 66.1 | 70.1 | 78.1 | |
mw | min | 34.7 | 37.1 | 39.3 | 41.7 | 44.9 | 47.3 | 49.7 | 52.9 | 56.1 | 62.5 |
s | max | 85 | 90 | 95 | 100 | 105 | 110 | 115 | 120 | 130 | 145 |
min | 82.8 | 87.8 | 92.8 | 97.8 | 102.8 | 107.8 | 112.8 | 117.8 | 127.5 | 142.5 | |
e ① | min | 93.56 | 99.21 | 104.86 | 110.51 | 116.16 | 121.81 | 127.46 | 133.11 | 144.08 | 161.02 |
* | - | - | - | - | - | - | - | - | - | - | |
KGS / 1000PCS | 1420 | 1690 | 1980 | 2300 | 2670 | 3040 | 3440 | 3930 | 4930 | 6820 | |
d | M110 | M125 | M140 | M160 | |
P | UNC | / | / | / | / |
UNF | 6 | 6 | 6 | 6 | |
UNF | 4 | 4 | / | / | |
m | max | 88 | 100 | 112 | 128 |
min | 85.8 | 97.8 | 109.8 | 125.5 | |
mw | min | 68.6 | 78.2 | 87.8 | 100 |
s | max | 155 | 180 | 200 | 230 |
min | 152.5 | 177.5 | 195.4 | 225.4 | |
e ① | min | 172.32 | 200.57 | 220.8 | 254.7 |
* | 170 | 196 | 216 | 248 | |
KGS / 1000PCS | 8200 | 13000 | 17500 | 26500 | |
Hom Qib thiab cov txheej:
Txuj Ci | Cov khoom siv | Qib | Xaus | Xov |
DIN933 DIN931 ISO4014 ISO4017 ASME B 18.2.1 | carbon hlau | 4.6 4.8 5.8 8.8 10.9 12.9 A2-70 A4-70 | Tiaj | UNC |
Zinc plated | ||||
Alloy hlau | Daj zinc plated daj | |||
PTFE | ||||
Stainless hlau | Dub Oxide | UNF | ||
Dacromet | ||||
Lwm yam | HDG | |||
Lwm yam |
Daim ntawv thov thaj tsam ntawm hex ceev:
Daim ntawv thov ntau ntawm cov khoom tsim los ntawm lub tuam txhab yog dav heev. Piv txwv li, cov noob txiv hex yog siv rau hauv kev ua liaj ua teb roj av, kev tsim kho tsheb, kev tsim kho, lub siab tso dej, kev hloov tsheb nqaj hlau, steel qauv engineering, tshuab hluav taws xob loj rau cov tshuab tsim thiab cov vaj tsev. Tau kawg, nyob rau qee txoj haujlwm tshwj xeeb hauv cov chaw no, qee cov khoom lag luam tseem yuav siv, xws li lub tsheb nqaj hlau, ntoo flange txiv ntoo, U-bolts, tiaj tiaj taub hau hexagon bolts, T-bolts, hex bolts thiab puag ncig lub taub hau Hex bolts, thiab lwm yam.
Petrochemical Teb
Kev Tsim Tshuaj Kho Mob
Kev Tsim Kho Vaj Tse
Siab Yeeb
Yuav ua li cas yuav hex ceev ntawm peb?
1. Kev Nug
Cov ntsaws khawm muaj ob hom. Ib qho yog cov khoom seem, xws li DIN934, txiv ntoo hex. Hauv lwm qhov yog Cov Tsis-tus qauv. Yog tias koj xav tau cov khoom seem, koj tuaj yeem qhia cov qauv, qhov loj me, qib (khoom siv), txheej thiab qhov ntau. Piv txwv li, koj xav yuav DIN934, M10, qib 8, zinc plated thiab 20000pcs.
Yog tias koj xav tau cov khoom tsis txheem, koj tuaj yeem qhia peb cov qauv, kos duab lossis cov qauv piav qhia. Tom qab ntawd peb tus kws ua haujlwm yuav kos cov qauv kev rau koj.
2. Nqe thiab Kev Them Nyiaj
Tus nqi tuaj yeem yog tus nqi / thooj, lossis tus nqi / kg. Peb tuaj yeem hais EXW, FOB, CFR, CIF nrog T / T, L / C, Western Union, thiab lwm yam. Los yog lwm txoj hauv kev pom zoo nrog cov neeg siv khoom.
3. Kev txiav txim
Tom qab kuaj xyuas, yog tias tus nqi thiab taug txhuas lub sijhawm yog ob qho tib si, ces peb tuaj yeem paub tseeb qhov kev txiav txim ntawm cov ntsia liaj qhov rooj thiab cov txiv ntoo. Peb yuav pib tsim tom qab tso nyiaj raws li cov kev cai peb cog lus.
4. Kev Pov Hwm Zoo
Peb yuav PICC cov khoom muaj nuj nqi li ntawm kev lag luam rau peb cov khoom txhua xyoo. Peb tuaj yeem pom zoo hauv daim ntawv cog lus uas peb yuav hloov cov khoom muag lossis rov qab them nyiaj yog tias muaj qee qhov teeb meem zoo tom qab koj tau txais peb cov khoom. Yog tias cov teeb meem muaj txiaj ntsig tshwm sim tom qab siv, peb yuav taug qab cov khoom muag los daws cov teeb meem. Thiab peb cov kev tuav pov hwm txoj cai tuaj yeem them rau koj cov kev ploj.
Vim li cas thiaj xaiv peb?
Lub tuam txhab taw qhia thiab qhov zoo
1. Peb yog cov chaw tsim khoom ntawm hex txiv ntoo thiab thooj tawv rau ntau tshaj 20 xyoo. Peb muaj ob lub chaw tsim khoom, ib qho yog Shanghai thiab lwm tus hauv Jiangsu. Peb lub peev xwm ntau lawm tuaj yeem yog 20000 + tons hauv ib xyoos. Peb tuaj yeem kho peb cov khoom raws li cov neeg siv khoom' qhov yuav tsum tau, kos duab thiab kuaj.
2. Peb tau muaj cov kws tshuaj ntsuam zoo thiab pab pawg tsim khoom kom nruj tswj hwm cov khoom ntawm cov neeg muas zaub.Peb muaj daim ntawv pov thawj ISO9001 thiab IATF16949.
3. Peb muaj cov khoom lag luam loj, txawm tias nws yog qhov loj me los yog cov khoom me me kom txaus los yuav.
4. Peb muaj ntau tshaj li ntawm 20 xyoo ntawm kev paub txog kev lag luam thiab kev pabcuam cov khoom sib txuas zoo meej, uas tuaj yeem pab cov neeg siv khoom yuav ntau yam khoom lag luam.
Cov FAQ
Q1: Puas yog koj lub Hoobkas lossis tuam txhab lag luam?
A: Peb yog cov chaw tsim khoom ntawm hex bolts thiab txiv ntoo rau ntau tshaj 20 xyoo. Peb muaj ob lub chaw tsim khoom, ib qho yog Shanghai thiab lwm tus hauv Jiangsu. Peb lub peev xwm ntau lawm tuaj yeem yog 20000 + tons hauv ib xyoos. Peb tuaj yeem kho peb cov khoom raws li cov neeg siv khoom' qhov yuav tsum tau, kos duab thiab kuaj.
Q2: Koj tau ua lag luam nyob rau txawv teb chaws tau pes tsawg xyoo?
A: Peb muaj ntau tshaj li ntawm 20 xyoo dhau los hauv kev xa khoom mus rau cov teb chaws thoob ntiaj teb nrog peb cov khoom zoo. Tam sim no peb tau xa tawm ntau dua 40 lub teb chaws, xws li Spain, Lub Tebchaws Yelemees, Ltalis,Belgium, United Kingdom, Lithuania,Asmeskas, Canada, Australia, Singapore, Nyiv, Thaib, Malaysia, Kaus Lim Qab Teb, Indonesia, Egypt, Philippines thiab lwm yam.
Q3: Koj puas muaj cov txiaj ntsig txaus?
A: Peb muaj cov khoom lag luam txaus hauv cov tsev khaws khoom lag luam nrog peev ntau. Peb muab kev pabcuam 24 xuab moos. Rau cov qauv feem ntau, peb muaj lawv ntawm Tshuag, xws li hex bolts, hex ceev, thiab lwm yam.
Q4: Yuav ua li cas kom paub meej tias txhua txoj kev' s zoo?
A: Ua ntej, peb muaj cov txuj ci teeb duab rau txhua yam khoom thaum tsim khoom.
Thib ob, pebcov neeg ua haujlwm feem ntau muaj ntau tshaj li 10-xyoo kev ua ntawm hex bolts.
Thib peb, Peb QC cov neeg yuav soj ntsuam txhua 2 teev. Yog tias pom cov khoom tsis zoo, lawv yuav tso tseg kom sai li sai tau.
Tom qab ntawd, cov khoom tiav tiav yuav raug kuaj xyuas dua ua ntej ua zaub mov xa tuaj uas tiv thaiv txhua yam khoom' s zoo.
Q5: Yuav ua li cas kom ntseeg tau txog kev nyab xeeb ntawm kev thauj mus los ntev?
A: Peb ntim khoom rau cartons ua ntej, thiab tom qab ntawv ntim cov cartons rau ntawm pob ntawv. Cov pallet tau yooj yim rau kev nqa los ntawm Forklift wihch yuav tiv thaiv cov thawv los ntawm kev puas tsuaj. Cov pab pawg tshaj lij uas ua kom txhua ntim yam xyuam xim.
Q6: Yam khoom twg koj tuaj yeem tsim kho?
A: Ib qho yog cov khoom seem, xws li DIN933, hex bolts. Hauv lwm qhov yog Cov Tsis-tus qauv. Yog tias koj xav tau cov khoom seem, koj tuaj yeem qhia cov qauv, qhov loj me, qib (khoom siv), txheej thiab qhov ntau. Piv txwv li, koj xav yuav DIN933, M12X60, qeb 8.8, zinc plated thiab 20000pcs.
Yog tias koj xav tau cov khoom tsis txheem, koj tuaj yeem qhia peb cov qauv, kos duab lossis cov qauv piav qhia. Tom qab ntawd peb tus kws ua haujlwm yuav kos cov qauv kev rau koj.
Muaj ntau yam, xws li hexagon bolts, flange bolts, round lub taub hau square caj dab bolts, nrog rau cov kab khiav, U-bolts, T-bolts, tiaj lub taub hau hexagon bolts, hex txiv ntoo, hex flange ceev.
Q7: Koj puas tuaj yeem muab qee yam qauv?
A: Cov qauv tuaj yeem muab raws li koj qhov yuav tsum tau ua.
Cov lus nug khoom
Hnyav plaub hau ua haujlwm hex bolts yog ib hom ntawm hex bolts. Lawv lub taub hau dav dav dav. Feem ntau siv A325, A325M, A490, A490M thiab lwm cov qauv, thiab American Standard ASME / ANSI B18.2.1-1981, GBB1228 thiab lwm cov qauv steel hnyav-ua haujlwm hex bolts.
Hex ntsia liaj qhov rooj puas tau tiav?
Bolted sib txuas yog txoj kev sib thooj ntawm kev sib txuas. Txawm li cas los xij, nyob rau hauv tus txheej txheem ntawm kev sib sau ua ke cov tshuab ua liaj ua teb, lub pob yuav ua rau swb, rhuav thiab lwm yam kev ua tsis tiav vim muaj ntau yam los yog kev sib dhos tsis raug. Hauv cov txheej txheem cov ntsia liaj qhov rooj sib dhos ntawm thaj chaw, nws feem ntau yog txuam nrog lub kaum sab xis ntawm lub ntsia liaj qhov rooj zawm.
Ntsuas ntsia liaj qhov rooj tau muab faib ua phau ntawv thiab tshuab. Kev ua haujlwm yog qhov qub thiab kuj tseem siv raws li cov qauv kuaj pom zoo ib yam. Txhawm rau txo qhov kev tawm ntawm cov khoom tsis raug, cov khoom lag luam tsim kev lag luam dav dav yuav tsum pom kev tshuaj xyuas cov khoom ntim lossis cov khoom lag luam kom tshem tawm cov khoom puas (cov teeb meem zoo xws li cov hniav raug mob, sib xyaw, xeb thiab lwm yam).
Txhawm rau ntsuas lub hexagonal bolts, thov siv lub ntsuas hluav taws xob. Vernier caliper yog cov khoom siv rau kev ntsuas cov hexagonal bolts. Nws feem ntau yog tseeb rau 0.01 cm, tab sis nws nyuaj dua li kev ntsuas ntawm daim kab xev. Txoj kev ntsuas feem ntau ntsuas lub xov kab thiab lub xov ntev.
Kev tsim cov hexagonal bolts tau muab faib ua ntau qhov chaw: tus neeg siv khoom yuav tsum muab cov qauv, kos duab lossis cov ntaub ntawv ntxaws ntxaws, thiab tom qab ntawd xaiv cov khoom tsim tawm, thiab tom qab ntawd yuav tsum tau xaiv xoob thiab nplua, thiab tom qab ntawd nws xaim xaim kos, xaim txiav, thiab txias ua. Forging, trimming, thiab thaum kawg dov mus rau hauv ib nrab khoom tiav. Cov khoom ua tiav tau xav tau kev kho cua sov thiab kho hluav taws xob los ua qhov khoom tiav. Txawm hais tias cov txheej txheem yooj yim, cov txheej txheem ntawm txhua ntu yog qhov nyuaj heev.
Cias muab, hexagonal flange bolts yog hexagonal taub hau thiab flanges thiab xov. Txawm hais tias nws zoo nkaus li zoo li hexagonal bolts, nyob rau qee qhov xwm txheej, lub luag haujlwm ntawm hexagonal flange bolts tshwj xeeb tshaj yog
Hexagon ntsia liaj qhov rooj: Tus tes taws nrawm nrawm nrog lub taub hau hex thiab cov ntsia hlau uas yuav ua kom haum nrog lub txiv ntoo kom ruaj ntseg ob ntu nrog los ntawm qhov.
Hom kev txuas no hu ua kev sib txuas bolted. Yog hais tias cov txiv ntoo yog unscrewed los ntawm lub ntsia liaj qhov rooj, ob qhov chaw tuaj yeem sib cais, yog li bolted kev sib txuas yog qhov kev sib txuas uas tshem tawm tau.
